Nice Info About Can You Convert 24VAC To 24VDC

Understanding the Basics

1. What's the Difference Anyway?

Alright, let's dive into this electrical soup! At its core, electricity comes in two main flavors: Alternating Current (AC) and Direct Current (DC). Think of AC like a playful river, constantly changing its direction of flow. That's what happens in your wall outlet, changing direction many times per second. DC, on the other hand, is like a calm, steady stream, flowing in one direction only. Batteries? Those are DC powerhouses.

Now, when we talk about "Can you convert 24VAC to 24VDC," we're asking if we can take that playful, fluctuating AC power and transform it into the stable, unidirectional DC power. And guess what? The answer is a resounding YES! But it's not magic; it involves some clever electronic components working together.

The "24V" part simply refers to the voltage level. Voltage, in simple terms, is the electrical "pressure." So, we're talking about converting 24 volts of AC to 24 volts of DC. Many devices, especially those containing sensitive electronics, prefer DC power because of its stability. Imagine your phone trying to charge with fluctuating current; it wouldn't be a happy camper!

Think of it like this: AC is the raw ingredient, and DC is the refined product. Converting AC to DC is like taking wheat and milling it into flour. You need a process, and that process involves some helpful equipment.

The Conversion Process

2. How Does the Magic Happen?

So, how do we actually wave our electronic wand and turn 24VAC into 24VDC? The key lies in a circuit called a rectifier. The rectifier's main job is to turn that alternating AC current into a one-way street, making it flow in only one direction. But heres the catch: the resulting current is still a bit bumpy; it's like a slightly uneven road. It's not smooth DC yet!

That's where the next component comes in: the filter. Imagine the filter as a smoothing iron for electricity. It takes that bumpy, pulsating DC and smooths it out into a nice, clean, consistent DC signal. Capacitors are commonly used as filters, acting like electrical reservoirs to store and release energy, filling in the gaps and smoothing out the ripples.

But wait, there's more! Even after filtering, the voltage might still fluctuate a bit. To ensure a stable 24VDC, we often use a voltage regulator. This clever device maintains a constant output voltage, regardless of slight variations in the input voltage or the load (the device drawing power).

Therefore, a typical AC to DC converter consists of these main parts: a transformer (if needed to step down the voltage), a rectifier, a filter, and a voltage regulator. These components work together to transform the AC voltage into a stable DC voltage. Think of it like a team of electrical engineers working together to solve a problem!

Components You'll Need

3. What Bits and Bobs are Required?

If you're feeling adventurous and want to build your own 24VAC to 24VDC converter, you'll need a few key components. First, a transformer (if the input voltage isn't already close to 24VAC) to step down the AC voltage to a more manageable level. Then you need a rectifier, usually made up of diodes, to convert the AC to pulsating DC.

Next, you'll require a filter capacitor to smooth out the DC voltage. The size of the capacitor depends on the current draw of your load; the higher the current, the larger the capacitor you'll need. Finally, a voltage regulator, like an LM7824, will ensure a stable 24VDC output. And don't forget the resistors that help your circuit behave properly.

Of course, you'll also need a circuit board or breadboard to connect everything together, along with soldering equipment (if you're using a circuit board) and a multimeter to test your circuit. Always double-check your connections and polarity before powering up the circuit, as incorrect wiring can damage components or even pose a safety hazard. Safety first!

However, unless you are confident working with electronics, it is almost always safer and easier to buy a pre-built 24VAC to 24VDC converter. These are readily available online and from electronics suppliers, and they come with built-in safety features and protection circuits. Plus, they're often much more compact and reliable than a homemade solution.

Pre-Built Converters

4. Why Reinvent the Wheel?

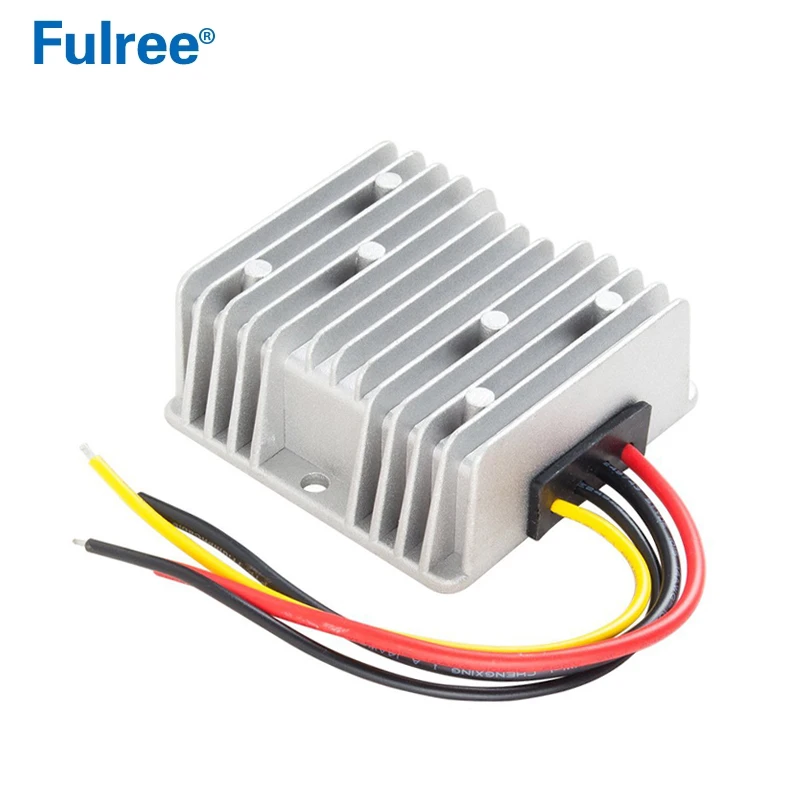

Let's be honest, sometimes the easiest solution is the best. Building your own converter can be a fun project, but it requires time, knowledge, and a certain level of risk. For most applications, using a pre-built 24VAC to 24VDC converter is the way to go. These devices are readily available, affordable, and offer a plug-and-play solution.

These pre-built converters come in various shapes and sizes, depending on their power output and features. Some are designed for DIN rail mounting, while others are enclosed in a metal case for ruggedness. Look for converters with features like over-voltage protection, over-current protection, and short-circuit protection to ensure the safety and reliability of your system.

When selecting a pre-built converter, consider the current draw of your load. Make sure the converter is rated for at least that amount of current, and ideally, leave some headroom for future expansion. It's always better to have a converter that's slightly oversized than one that's operating at its maximum capacity.

Installing a pre-built converter is usually as simple as connecting the 24VAC input and the 24VDC output. Be sure to follow the manufacturer's instructions carefully and pay attention to polarity. Also, ensure that the converter is properly grounded to prevent electrical hazards. A properly selected and installed converter can provide years of reliable service, making it a worthwhile investment.

Applications

5. What Uses This Converted Power?

Now that we know how to convert 24VAC to 24VDC, let's explore some of the applications where this converted power is commonly used. One common application is in HVAC (Heating, Ventilation, and Air Conditioning) systems. Many HVAC control systems and sensors operate on 24VDC, requiring the conversion from the standard 120VAC or 240VAC power supply.

Another application is in industrial automation. Programmable Logic Controllers (PLCs), sensors, and actuators often use 24VDC as their power source. Using a standard voltage like 24VDC simplifies the design and maintenance of these systems. 24VDC is also safer than higher voltages, reducing the risk of electrical shock.

Security systems are another common application. Security cameras, access control systems, and alarm panels often operate on 24VDC. Using a dedicated 24VDC power supply ensures reliable operation, even during power outages (when combined with a backup battery). Many other small electronic devices that requires stable voltage of 24VDC.

From home automation to industrial machinery, the conversion of 24VAC to 24VDC plays a crucial role in powering a wide range of devices and systems. Understanding the process and selecting the right components or pre-built converter is essential for ensuring reliable and safe operation.

FAQ

6. Need More Info? Look Here!

Still scratching your head? Here are some frequently asked questions to shed some more light on the 24VAC to 24VDC conversion process.

Q: Is it dangerous to work with 24VAC?

A: While 24VAC is considered low voltage, it can still deliver a shock under certain conditions. Always exercise caution when working with electricity, and disconnect the power source before making any connections or adjustments.

Q: Can I use a different voltage AC transformer?

A: Yes, but you'll need to adjust the components in the rectifier and filter stages to ensure a stable 24VDC output. It's generally easier and safer to use a transformer that outputs close to 24VAC.

Q: What happens if I connect the polarity wrong?

A: Connecting the polarity wrong can damage the voltage regulator, the load, or both. Always double-check the polarity before powering up the circuit.

Q: How do I choose the right size capacitor for the filter?

A: The size of the capacitor depends on the current draw of your load and the acceptable ripple voltage. A larger capacitor will provide smoother DC voltage but may also increase the cost and size of the circuit. Use online calculators or consult datasheets to determine the appropriate capacitor value.
